Avigilon LPR camera's

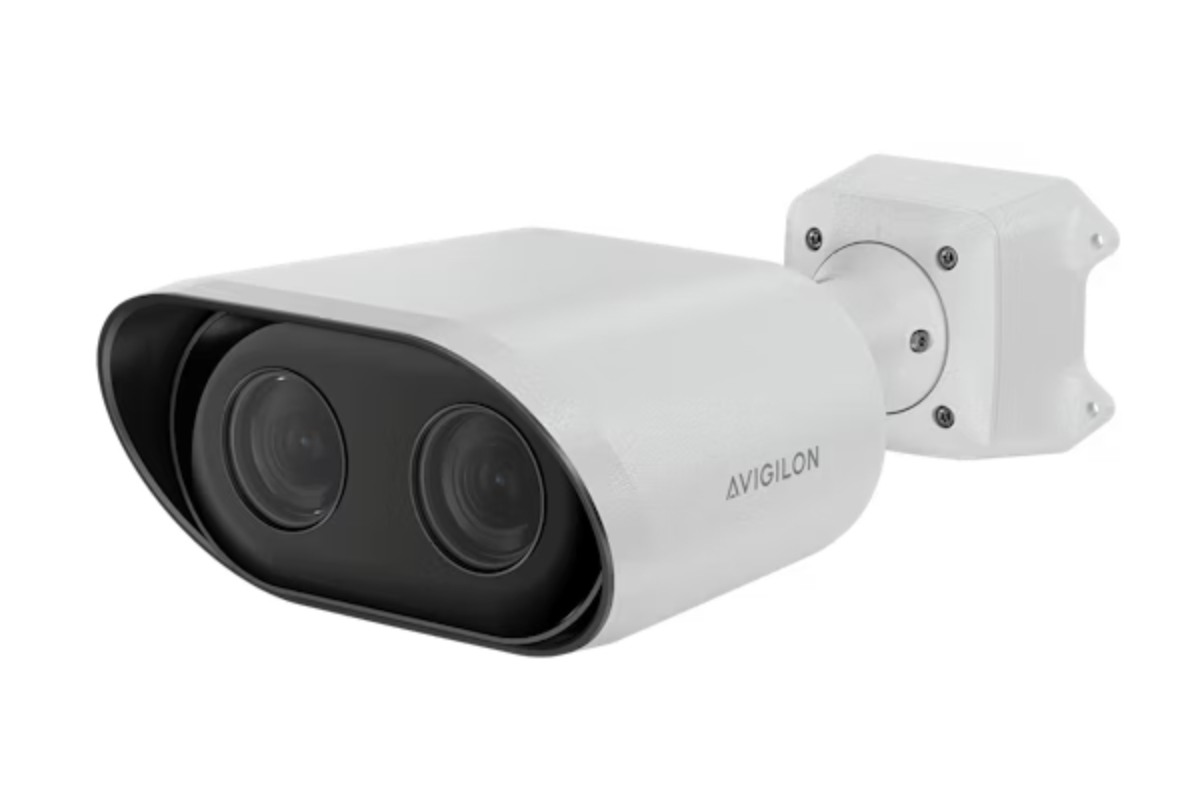

L6A 3MP LPR Camera; 850nm

Artikelnummer:
VSFL6A8IR

L6A 3MP LPR Camera; 850nm

  • Camera performance Optimal Capture Distance 50 ft (15.2 m)
  • Capture Range 30 - 75 ft (9.1 - 22.9 m)
  • Capture Speed Maximum 100 mph (161 km/h)
  • Performance Mode, 75 mph (121 km/h)
  • Eco Mode Field of View 24 ft (7.3 m) (multi-lane coverage)
  • Optics Sensor Type 2.1MP Starlight Sensor
  • Image Resolution 1920 x 1080px
  • Pulsed LED Illumination 850 nm
  • Housing Size (inc mounting ball) 5.0 x 2.4 x 7.1 in (127 x 62 x 180 mm)
  • Color Black, with Paintable Shroud Environmental
  • Environmental Protection IP67
  • Operational Temperature-22 to +131°F (-30 to +55°C)
  • Solar panel power unit Power 45W
  • Battery Capacity 12 Ah
  • Cable Length 15 ft (4.6 m)
  • Connector M12 Included
  • Accessories Mounting Bracket, Band Straps Solar Panel Frame
  • Dimensions 781.9 mm (W) x 470.6 mm (L) x 187.8 mm (D)
  • Solar Panel Bracket Dimensions 48.25 mm (W) x 250.4 mm (L) x 52.7 mm (D)
  • Weight 27lbs for Cat1 with two batteries, 35lbs for Cat3 with two batteries
  • Product Warranty 1 year (option to purchase up to 4 additional years)
  • Wireless interface Bluetooth Bluetooth 5 LE WiFi 802.11ac
  • Cellular Internal LTE modem
  • Direct Line Input Voltage 12V DC Dual-Cell Battery 9.7 Ah (up to 20,000 scans on a single charge)
  • Power Consumption 9W maximum, 4W nominal
  • Camera accessories Description Optional External Cellular Antenna, 120V AC Power Adapter, Expansion Solar Panel, Solar Power Extension Cord, Power Pole Tap, Multi Unit Charger - 3 or 6 internal battery packs
